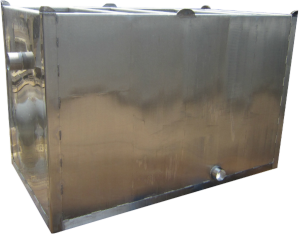

10 L/SEC - Stainless Steel Grease Trap

Product Description

  • Manufactured from high grade stainless steel
  • Removable strainer baskets for easy maintenance
  • Flow rate: 10 Liters per second ( 10L/sec)
  • Inlet/Outlet 100 mm / 150 mm
  • Size (L) X (W) X (H) = 2400 mm X 1200 mm X 1170 mm
  • S/steel 3 mm
  • Material 304 Stainless steel
  • Gravity separation
  • Odour sealing lids
  • Optional suction outlet
  • Outlet vented

Product Uses

Bakeries, large and small resturants, kitchens and bucheries

grease trap 10lps

Size Calculation

Meals per day
  • 200 meals = 1 Lps
  • 400 meals = 2 Lps
Small dishwasher 1.5 Lps Large dishwasher 3 Lps

Product Drawing

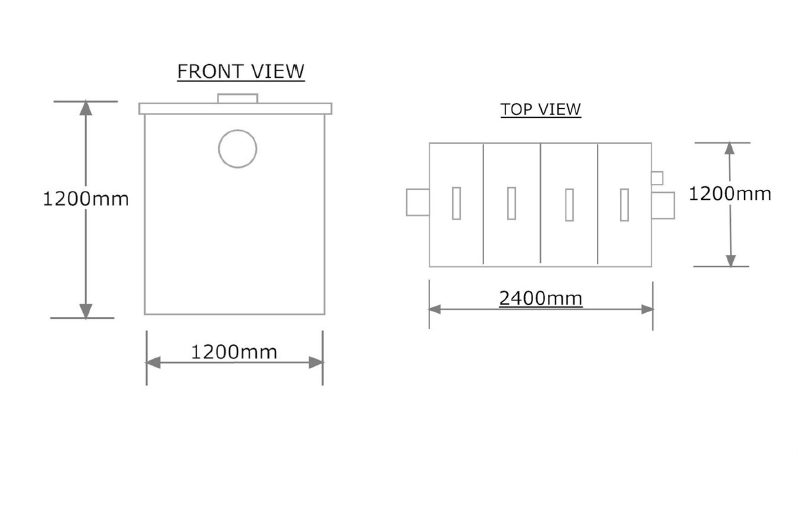

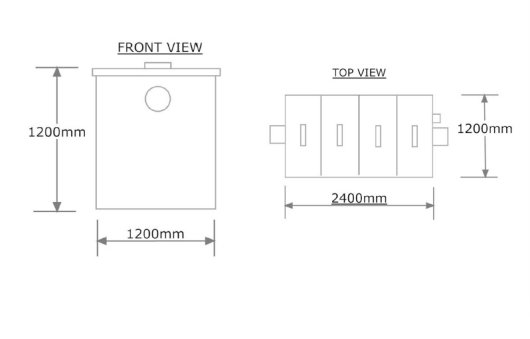

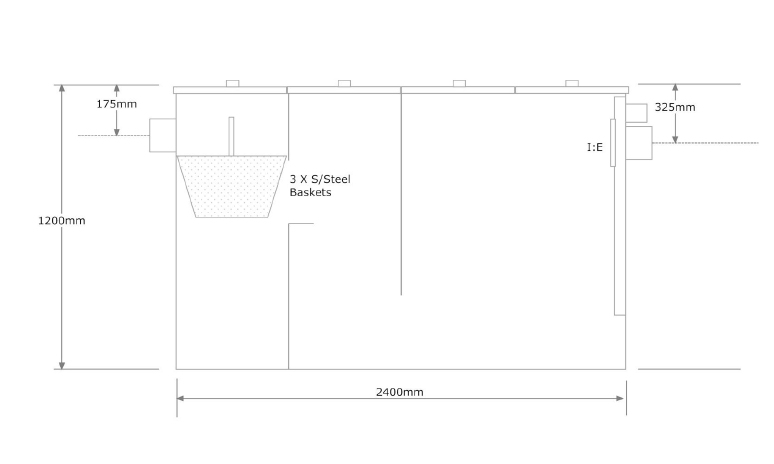

grease trap drawing #1 grease trap drawing #2
