AT 1000 - Stainless Steel Grease Trap

Product Description

  • Manufactured from high grade stainless steel
  • Removable strainer baskets for easy maintenance
  • Flow rate: 2 Liters per second ( 2L/sec)
  • Inlet/Outlet 50 mm / 100 mm
  • Size (L) X (W) X (H) = 1000 mm X 450 mm X 800 mm
  • S/steel 2 mm
  • Material 304 Stainless steel
  • Gravity separation
  • Odour sealing lids
  • Optional suction outlet
  • Outlet vented

Product Uses

Bakeries, large and small resturants, kitchens and bucheries

grease trap at1000

Installation

  • Under sink
  • Next to sink
  • Underground
  • Outside

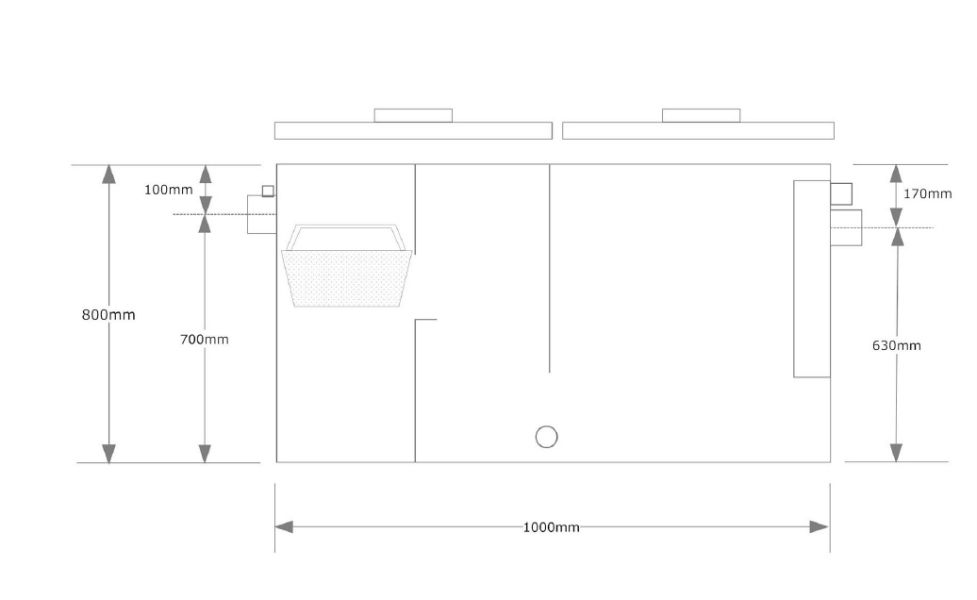

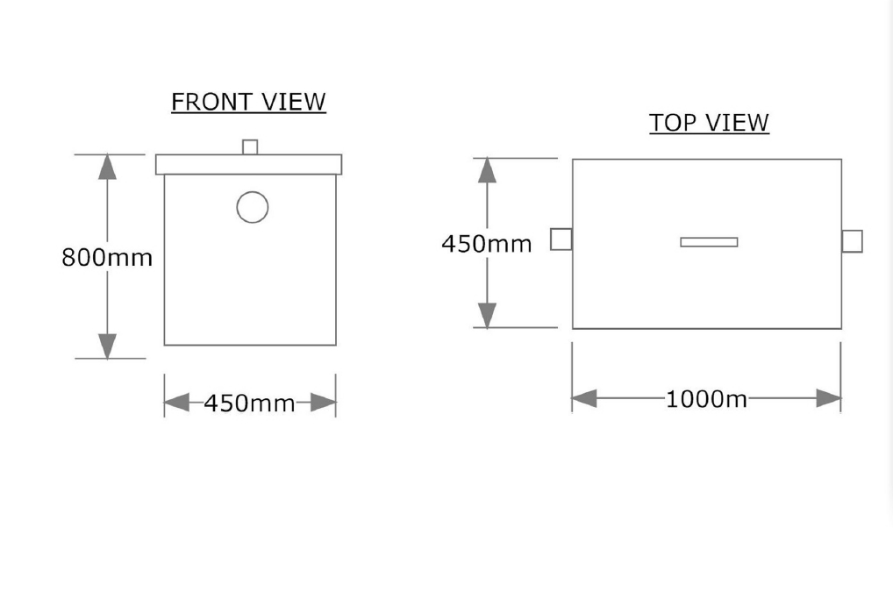

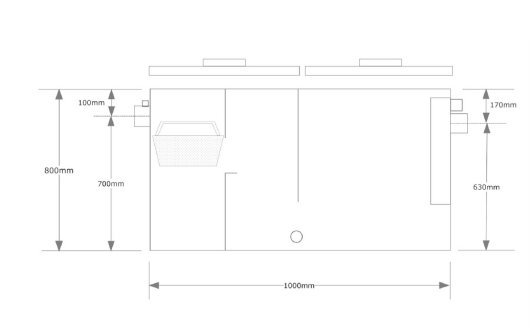

Product Drawing

grease trap drawing #1 grease trap drawing #2
